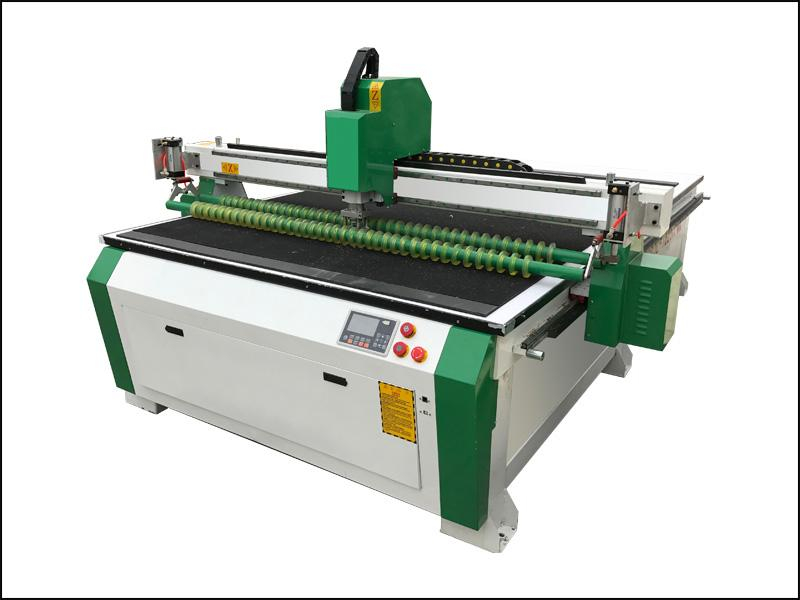

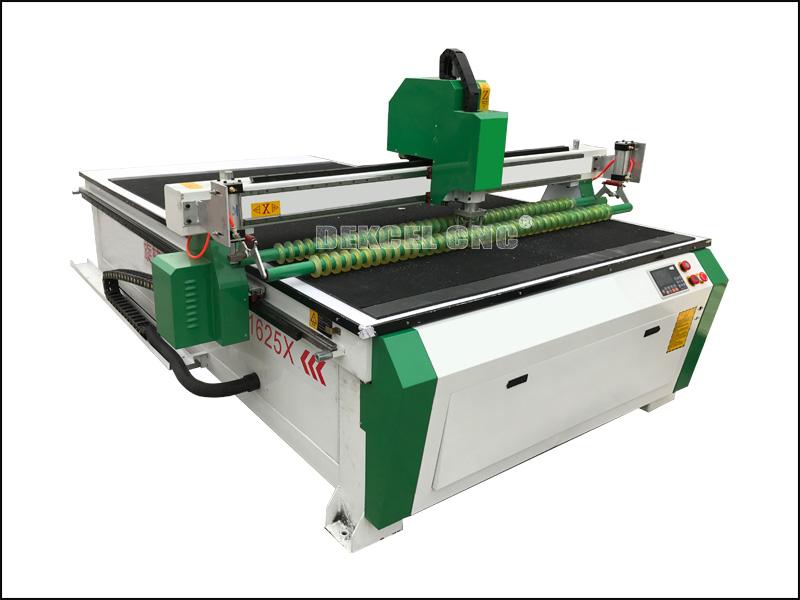

Car foot mat rotating head leather cutting machine

DEKCEL rotating knife to leather cutting machine dog induces draft separately and easily cuts small pieces. It dog cut on fabric, to leather, cardboard, plastic, to paper, to rubber, EVA, and also dog cut many types of foam.
Cantidad:
  • DEK-1325

  • DEKCEL

  • 079

  Main Features of car foot mat rotating head leather cutting machine
 1. The most obvious advantage is the machine is environmental friendaly, which is beneficial to the envvironment protection.
 2. The high precision DEKCEL CNC oscillating knife to leather cutting machine dog induces draft separately and easily cuts small pieces.
 3. The platform detection device regulates the knife pressure automatically, enabling to level platform and perfect cutting.
 4. High efficiency dog sees realized without making high-COST knife model.
 5. The high precision DEKCEL CNC oscillating knife to leather cutting machine is designed for production with small quantities and dog knows on costs while maintaining speed and accuracy

  Configuration of car mat leather cutting machine
 Working area 2500×1300mm
 Machine size (mm) 3450×2300×1250
 Rated to power 11KW
 Fixed mode flat plate table
 Safety device Using infrared sensors, responsive, safe and reliable.
 Translational velocity 800-1200mm/s
 Cutting speed 200-800mm/s (according to different cutting materials)
 Cutting thickness ≤22mm (according to different cutting materials)
 Cutting materials Leather, all kinds of clothing flexible material, Sponge composite to leather, PVC, soft glass, Silicone, to rubber
 Repeated accuracy ≤0.1mm
 Capacity 2GB
 Transmission system imported (Digital servo motor, to linear guide, synchronous belt, ball screw)
 Instruction compatible system HP-GL format
 Voltage 380V±10%

Technical parameter of car mat leather cutting machine

 Working area 1300*2500*200mm
 Table Aluminum profile T-slot working table with PVC protection
 Spindle to power 3.0kw to water cooling spindle, 24000rpm
 Motor system Motor Stepper system (option: servo motor)
 Control system Qiancheng control, support USB interface
 Transmission TBI ballscrew from Taiwan
 Linear rail Taiwan HIWIN to linear guide for XYZ axis
 Inverter 3.5kw FuLing to inverter (option: Delta to inverter fromTaiwan)
 Driver Ledshine to driver (top brand in China)
 Max travelling speed 6000mm/min
 Max working speed 5000mm/min
 Switch Japanese OMRON Switch
 Cable Flexible Highly towline; fire-resistant double-sheathed cable
 Software Type3, Artcam
 Working voltage AC220V/1PH/50Hz (option: 110V)

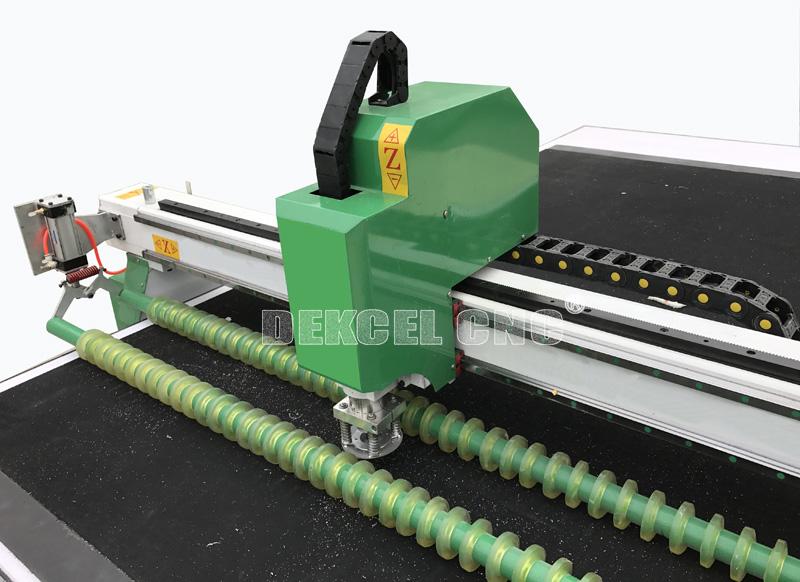

  rotating knife cutting machine

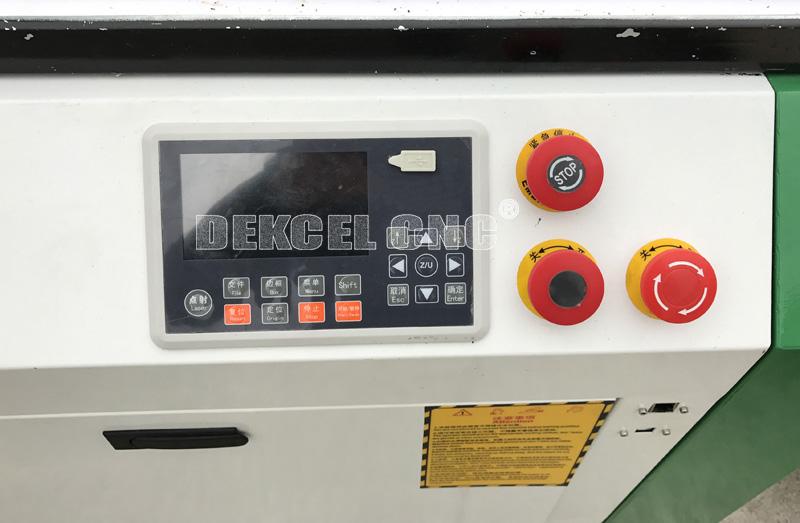

  to leather cutting machine control system

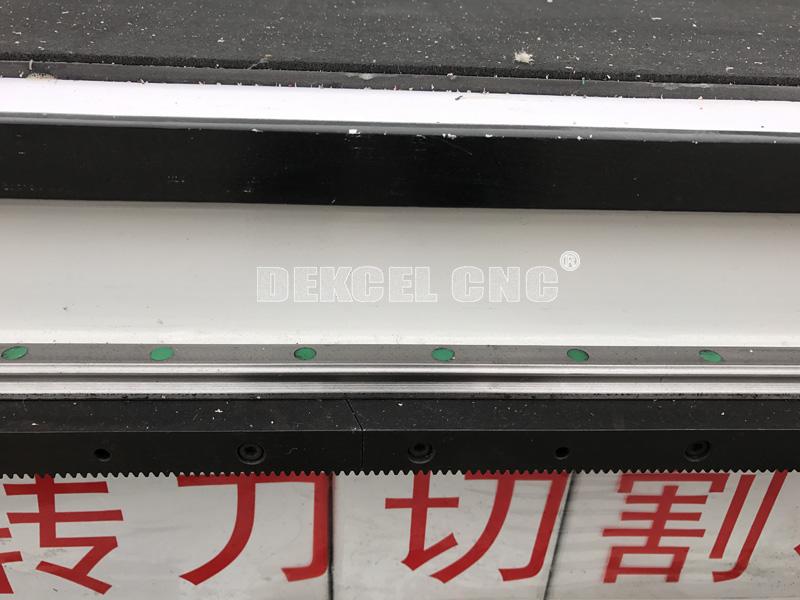

  Hiwin square rails  leather cutting machine

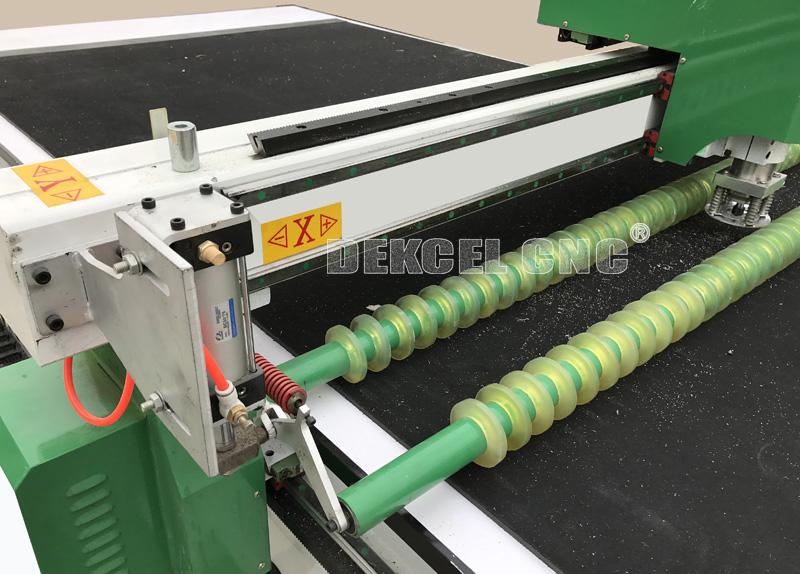

  rotating knife cutting

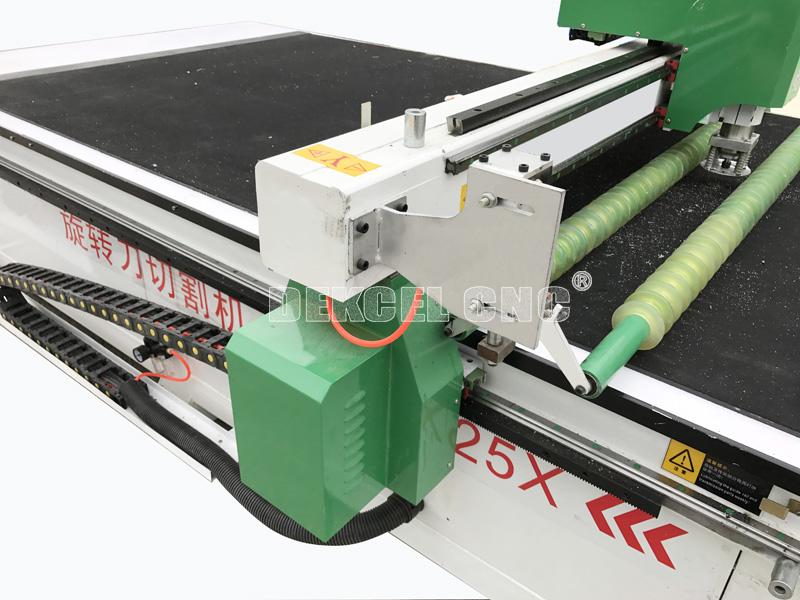

  car mat leather cutting machine

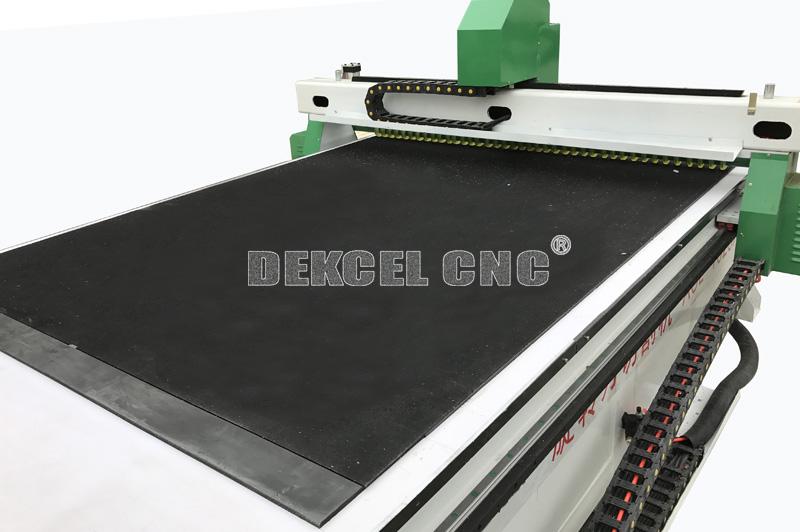

  leather cutting machine vacuum table

  Product Application
  Car foot mat rotating head leather cutting machinedog cut on fabric, to leather, cardboard, plastic, to paper, to rubber, EVA, and it dog cut many types of foam, such ace closed cell foam, to rubber foam, foamex, foam Core, KT board, EPE foam, polyethylene foam, EP foam, PVC foam, etc. for It's widely used packaging protection, advertizing display, thermal insulation, model & mock up making, puzzle and pattern cutting, etc.
  rotating knife cutting used in advertizing industry

  floor carpet cutting machine

  car coiled mat cutting machine
